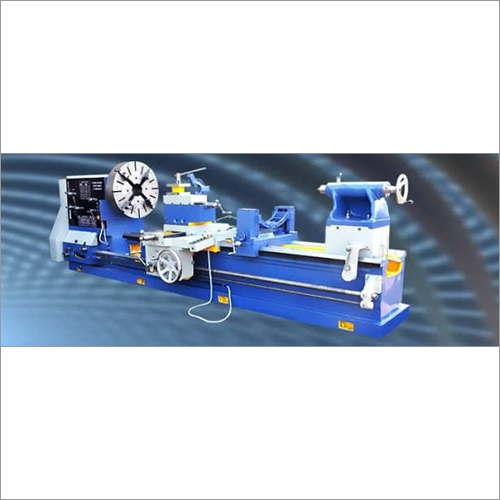

Commercial Extra Heavy Duty All Geared Roller Grooving Lathe Machine

Get a Price/Quote

MOQ : 1 Piece

Commercial Extra Heavy Duty All Geared Roller Grooving Lathe Machine Specification

Product Type
All Geared Roller Grooving Lathe Machine

Material
High Grade Cast Iron and Steel

Cutting Thickness
Up to 40 mm Micrometers (um)

Cutting Speed
Variable, up to 1200 RPM RPM

Automatic Grade
Semi-Automatic

Control System
Manual, Gear Operated

Max. Swing Diameter
900 mm Meter (m)

Voltage
415 V, 3 Phase, 50 Hz Volt (v)

Weight (kg)
Approx. 3500 kg Kilograms (kg)

Dimension (L*W*H)
4350 mm x 1270 mm x 1525 mm Millimeter (mm)

Feature
Other

Color
Industrial Blue and Grey

Surface Finish Accuracy
Up to 10 microns

Tailstock Quill Travel
200 mm

Lead Screw Diameter
45 mm

Spindle Bore
105 mm

Chuck Size
450 mm (Three Jaw)

Distance Between Centers
3000 mm

Main Motor Power
7.5 HP (5.5 kW)

Bed Type
Hardened and Ground

Coolant System
Fitted Standard

Gearbox Type
All Geared, Oil Bath

Number of Speeds
12 Speeds

Commercial Extra Heavy Duty All Geared Roller Grooving Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Week

Delivery Time
1 Week

About Commercial Extra Heavy Duty All Geared Roller Grooving Lathe Machine

Extra Heavy DutyAll Geared Roller Grooving Lathe Machine is unmatched in terms of design and performance. This machine is well designed and developed in our ultra-advanced production site with the help of cutting-edge tools and techniques. It has got a precision design and high operational reliability. It is typically used in industries including mechanical, automobile, metalworking, among others for extra heavy-duty applications. Extra Heavy DutyAll Geared Roller Grooving Lathe Machine is easy to use and maintain. It can be purchased from us at a cost-effective price.

Specification

Model	NGL 16mm	NGL 20mm	NGL 20mmB	NGL 26mm	NGL 26mmB	NGL 30mm	NGL 30mmB	NGL 36mm	NGL 40mm	NGL 40mmB	NGL 48mm	NGL 60mm	NGL 80mm
Length of Bed	4900	6000	6100	7800	7900	9150	9150	12200	12200	12200	14600	18300	24400
Width of Bed	650	650	750	750	800	900	1050	1150	1150	1250	1500	1650	1800
Height of Center	600	600	700	700	750	850	1000	1100	1100	1150	1350	1500	1650
Spindle Hollow	103	103	103	103	103	103	127	127	127	150	150	150	150
Distance Between Center	2850	4050	4000	5800	5500	6800	6700	8400	9600	9500	11900	15500	21500
H.P. Recommended	10	10	15	15	20	20	25	30	30	30	40	50	50
Lead Screw Dia	60	60	60	60	60	60	75	75	75	75	85	85	85
Lead Screw Pitch T.P.I.	2	2	2	2	2	2	2	2	2	2	2	2	2

Precision Engineering for Heavy Duty Tasks

Built from high-grade cast iron and steel, this lathe machine combines strength with precision. Its roller grooving capability and surface accuracy up to 10 microns support intricate machining on heavy metal workpieces. The 12-speed gearbox and variable cut rates allow users to tackle a wide array of fabrication and turning requirements reliably.

Versatile Applications and Customizations

Whether used for roller grooving, metal turning, or general industrial fabrication, this all geared lathe handles large jobs with ease, thanks to its spacious design and powerful 7.5 HP motor. The customizable engraving area and wide swing diameter accommodate various job sizes, making it suitable for diverse industrial sectors.

FAQ's of Extra Heavy Duty All Geared Roller Grooving Lathe Machine:

Q: How does the all geared, oil bath gearbox benefit the lathe's operation?

A: The all geared, oil bath gearbox ensures smooth and consistent power transmission with minimal heat generation and wear. This results in longer machine life, reduced maintenance needs, and stable, precise machining performance even during prolonged and heavy-duty use.

Q: What materials and job types is this lathe machine designed for?

A: Engineered from high-grade cast iron and steel, the machine is intended for heavy industrial uses such as roller grooving and metal turning. It can handle large and dense workpieces, making it ideal for factories, workshops, and fabrication units engaged in substantial manufacturing tasks.

Q: When should the coolant system be used during machining?

A: The fitted coolant system should be engaged when performing extended or intensive operations that generate significant heat, such as deep grooving, high-speed cutting, or machining thick materials. Proper coolant use protects both the workpiece and cutting tools, ensuring accuracy and prolonging equipment life.

Q: Where can this lathe machine be installed for optimal performance?

A: For optimal results, the lathe should be installed on a flat, stable floor in a well-ventilated industrial environment with access to 415 V, 3 phase, 50 Hz power. Ample workspace is advised, considering its dimensions-4350 mm x 1270 mm x 1525 mm-to accommodate job setup and safe operation.

Q: What is the process for adjusting cutting speed and thickness on this lathe?

A: Cutting speed is adaptable via the gearbox, offering 12 speeds up to 1200 RPM. Cutting thickness can be manually set, achieving up to 40 mm depending on material and tool capability. Always consult the operation manual before adjustments for optimal accuracy and machine longevity.

Q: How does the machine ensure high surface finish accuracy?

A: With its hardened and ground bed and precisely engineered components, this lathe achieves a surface finish accuracy of up to 10 microns. Rigorous alignment and vibration damping from its solid construction further guarantee superior finish quality on machined workpieces.

Q: What are the primary benefits of using a conventional, manual control system in this lathe?

A: The manual, gear operated control system provides operators with direct command over all functions, allowing flexible adjustment to accommodate various materials and tasks. This increases customizability, reduces electronic complexity, and is well-suited for skilled machinists preferring hands-on operation.
